Beschreibung

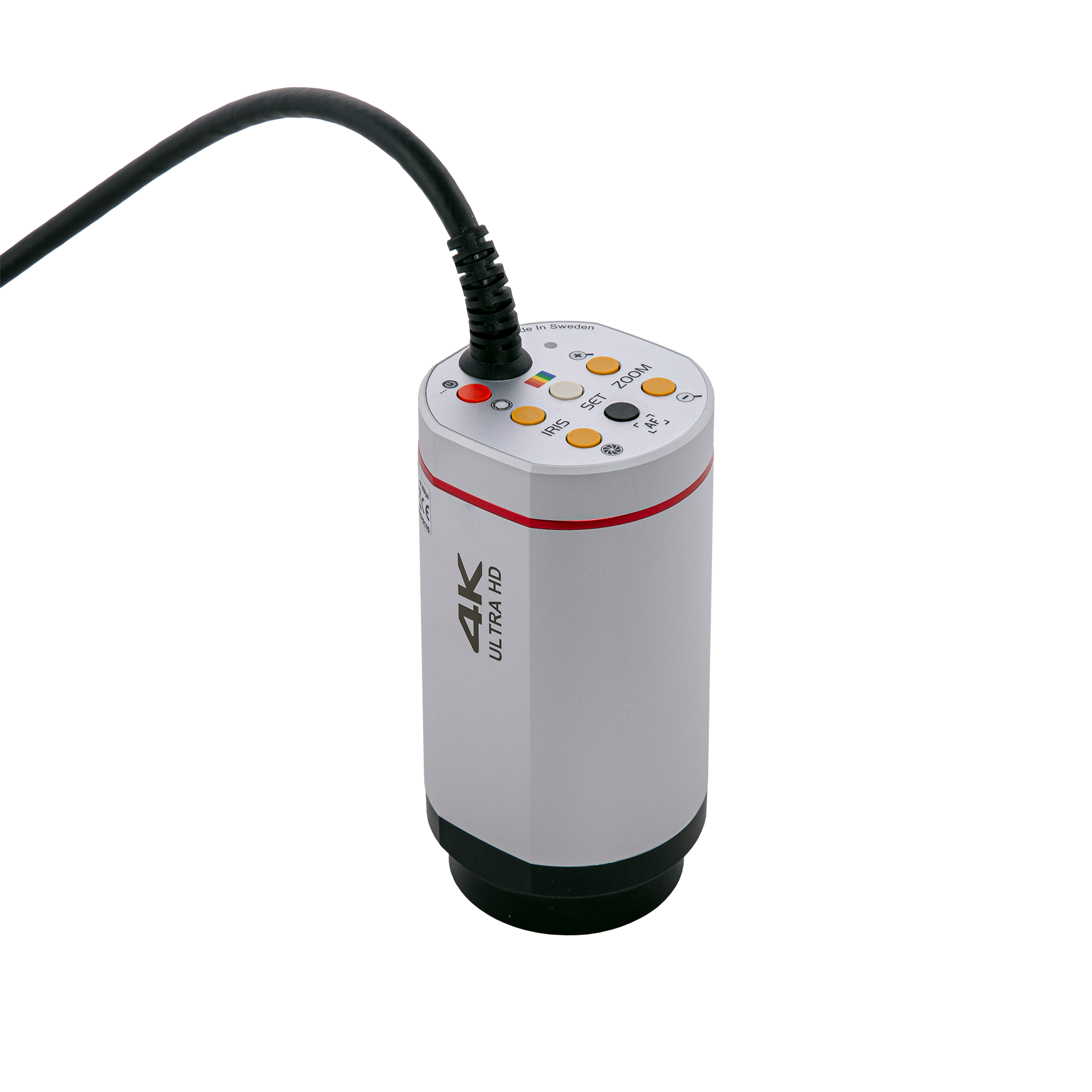

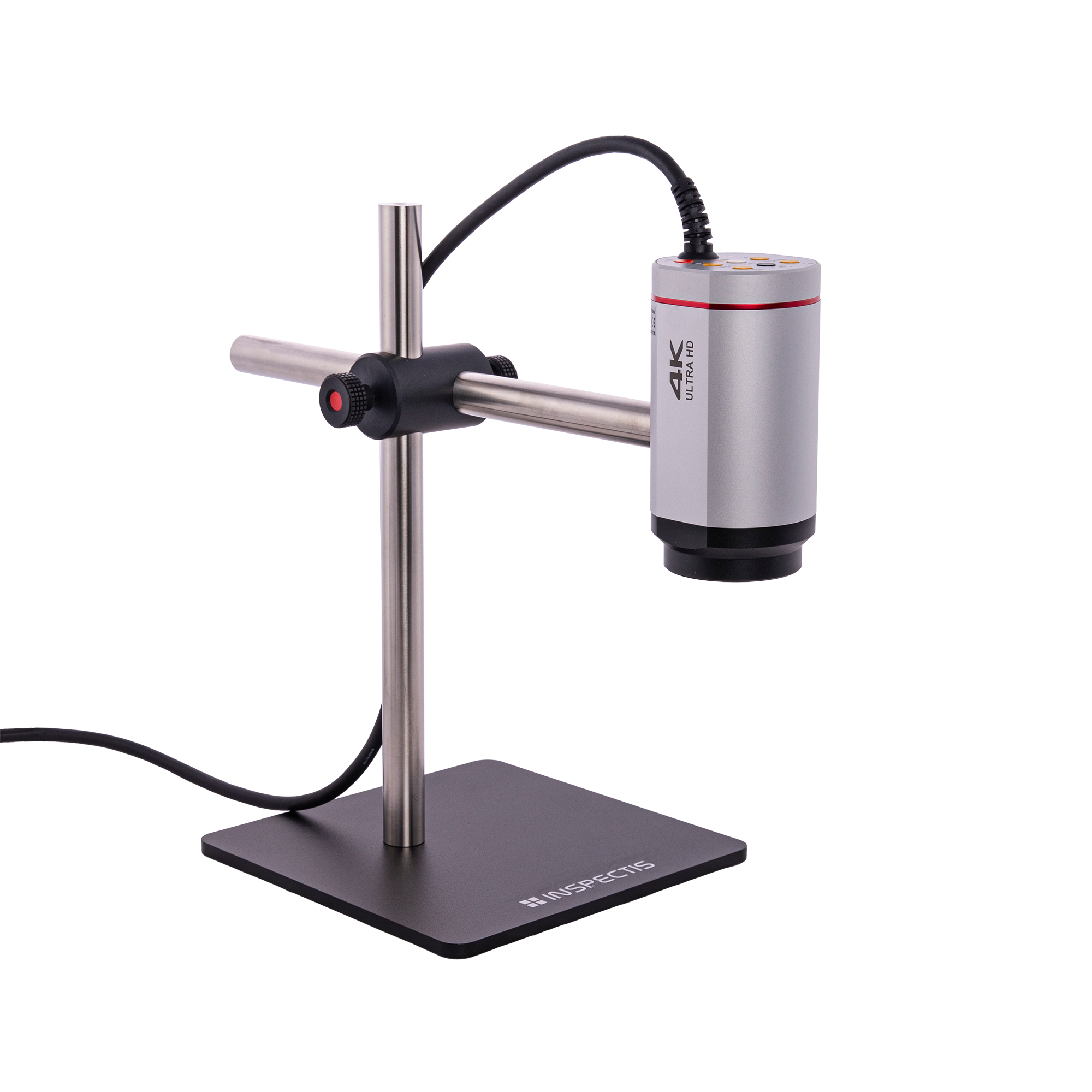

Industry grade long lasting digital microscope in robust aluminium housing. Small form factor and excellent cable management thanks to its single cable design. Functional and ergonomic design. Designed according to industry standards.
The system’s standard optics produces ~ 2.9x – 150x magnification (on 28” monitor) maintaining high resolution power.
DEVELOPED FOR PRODUCTIVITY
- State of the art 4K60 camera technology
- 60 frame per second video with almost zero latency
- Highly sensitive image sensor with wide dynamic range
- Superior lens design with motorised zoom and fast auto focus
- 25x optical zoom and 2x extra digital zoom with 3D noise reduction
- Modular system fully adaptable to different applications and environments
- Single cable design for clean installation
- Industrial design robust, long lasting all-aluminium housing
- Small form factor not obscuring the operator view or occupy the worktable
- Fully compatible with a wide range of Inspectis accessories.
Parameter Value
- Video Output 4K 2160p, 60 frames per second, 8.4Mp
- Optical System 25:1 motorised zoom with auto-focus and auto-brightness intensity control
- Digital Zoom 2x digital zoom with 3D noise reduction
- Magnification (on 28” monitor) 2.9x to 151x with stanard lens
- Field of View 210mm at 1x zoom, 4mm at 50x zoom
- Working Distance 225mm with standard lens
- HDMI2.0 video output, 5P MiniDin power input, 8P MiniDin for communication

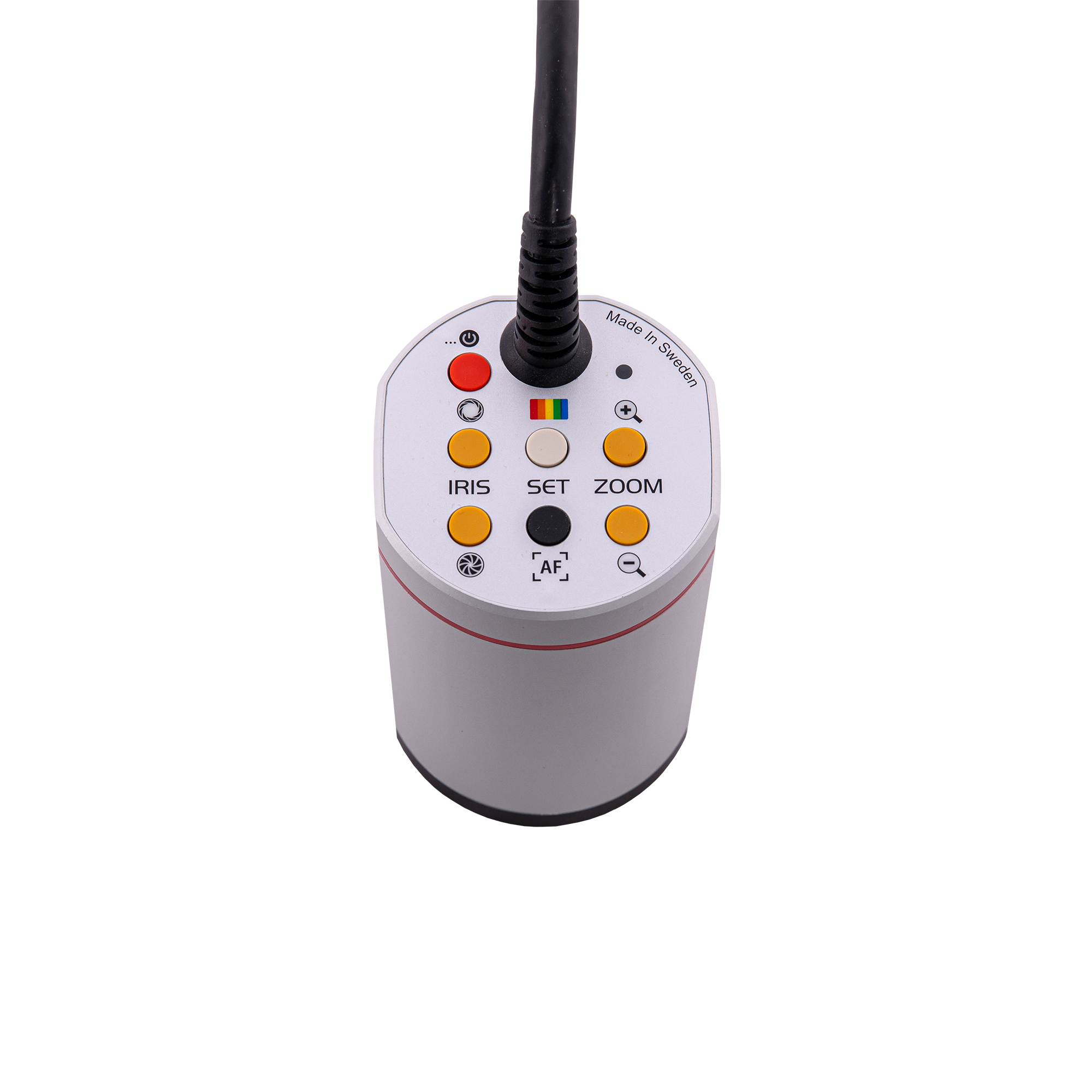

- On-board Controls Zoom, Auto-brightness level, Manual/Auto Focus, White Balance
- Illumination White LED Ringlight
Hinweis: Dieses ist eine allgemeine Beschreibung und die Abbildungen beispielhaft.
