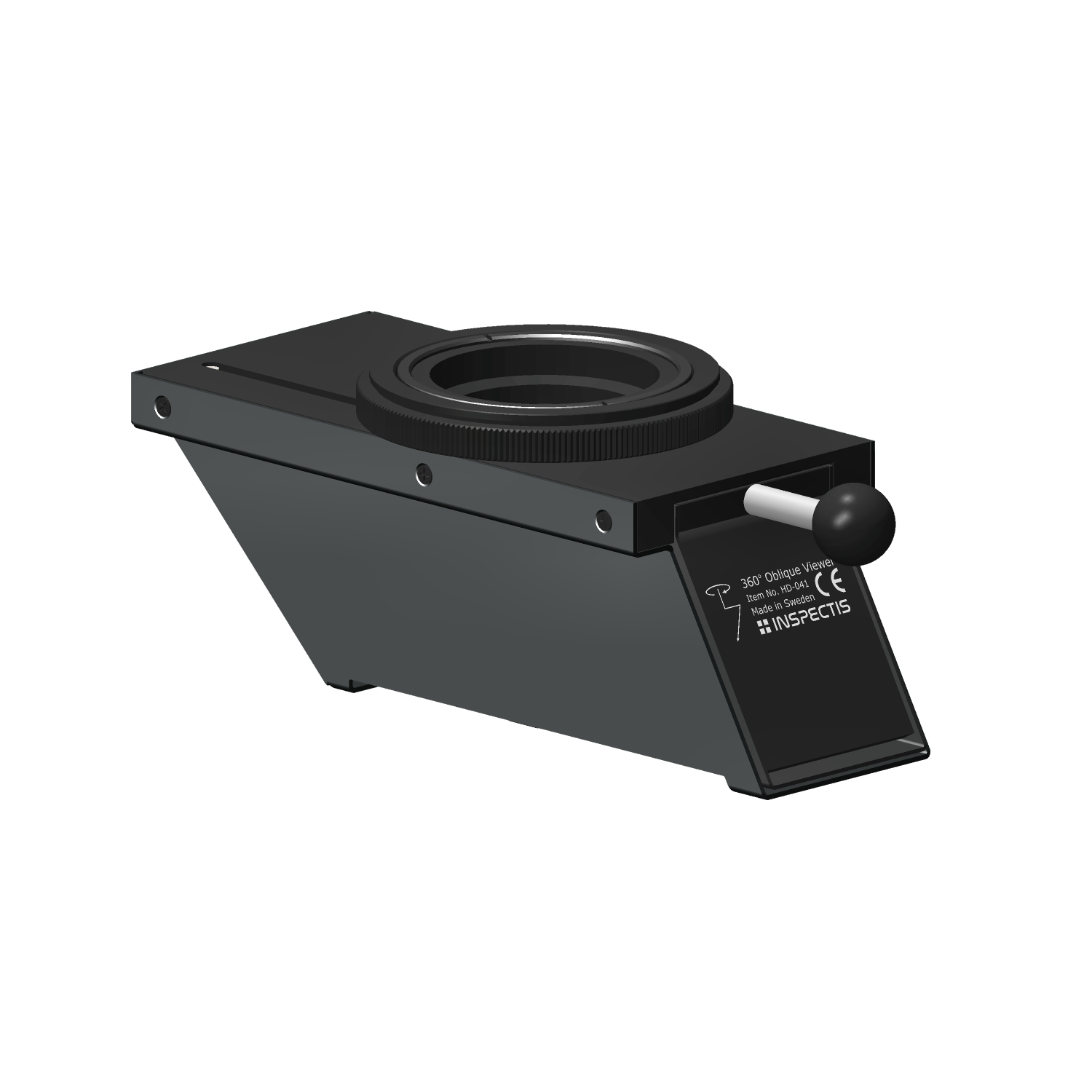

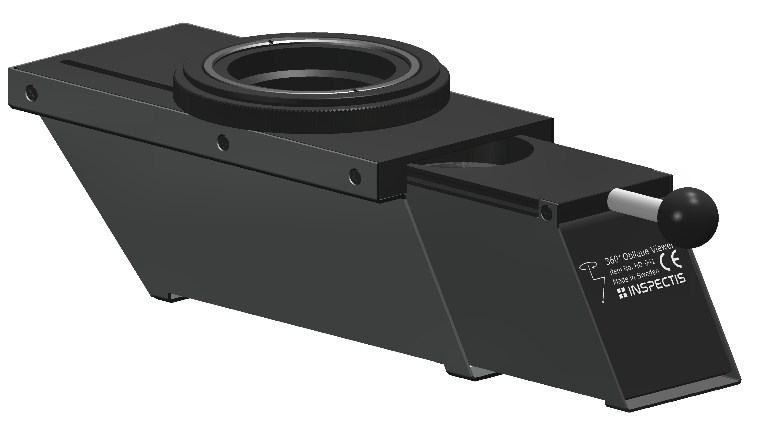

Inspectis 360° Rotating Viewer, working distance ~75mm, angle of view ~32°, max. field of view ~58mm

Description

360° rotating viewer for rotating the image at 32° oblique angle by manipulating the optical path without touching the object. Designed for side-view inspection of objects while both the digital microscope and the inspection object remain stationary.

Inspectis Rotating Viewer operates in both “side-view” and standard “right-angle-view” modes. Equipped with an optical lens to maintain the working distance in both operating modes without having to change the axial position of the camera.

• Angle of View ~32 degrees, all directions
• Field of View ~ 58 mm (min. FoV is defined by maximum zoom of the lens)
• Working Distance ~75mm
• Mount M67x0.75mm, for mounting on the ring light
• Size ~ 162(L) x 65(W) x 63(H) mm (at oblique view mode) ~ 215(L) x 65(W) x 63(H) mm (at right-angle view mode)
